Add To Your WishlistWalnut Timber Swing Door
Add To Your WishlistWalnut Timber Swing Door

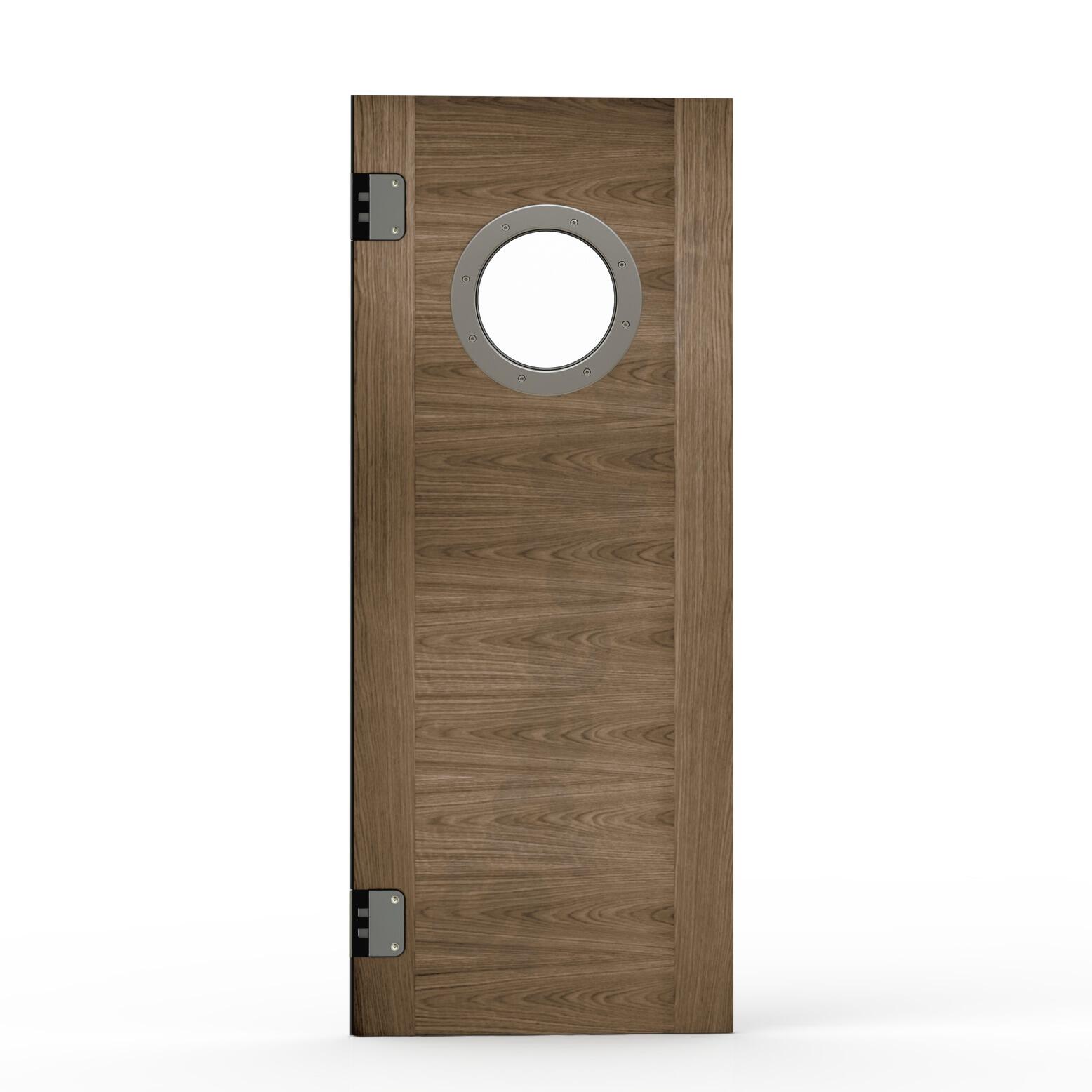

This door is supplied ready to fit and features a 40mm solid core, walnut veneer panel with 20mm stiles and pre-finished coating. The Polydoor P1000 stainless steel hinges provide a smooth 180 degree operation, further complemented with optional kick/push plates and circular stainless steel window. Each door is provided with finger safe door jamb seals as standard and available in a range of sizes.
Please refer to the downloads section below for additional information.
Sorry we're out of stock!
We can let you know when it's available again, just enter your email address below.
- Additional Information
A dual action, 180 degree timber swing door that combines a rich look with exceptional performance. This particular model is supplied with a solid core panel with 20mm stiles and a pre-finished real wood veneer.
This model is supplied ready to fit and incorporates the Polydoor P1000 hinge system commonly found in high performance retail door sets throughout the world. This heavy duty hinge incorporates a vertical fitting adjustment to allow each door to be raised and lowered to avoid binding on either side of the opening before fixing in the final position.
Door features include:

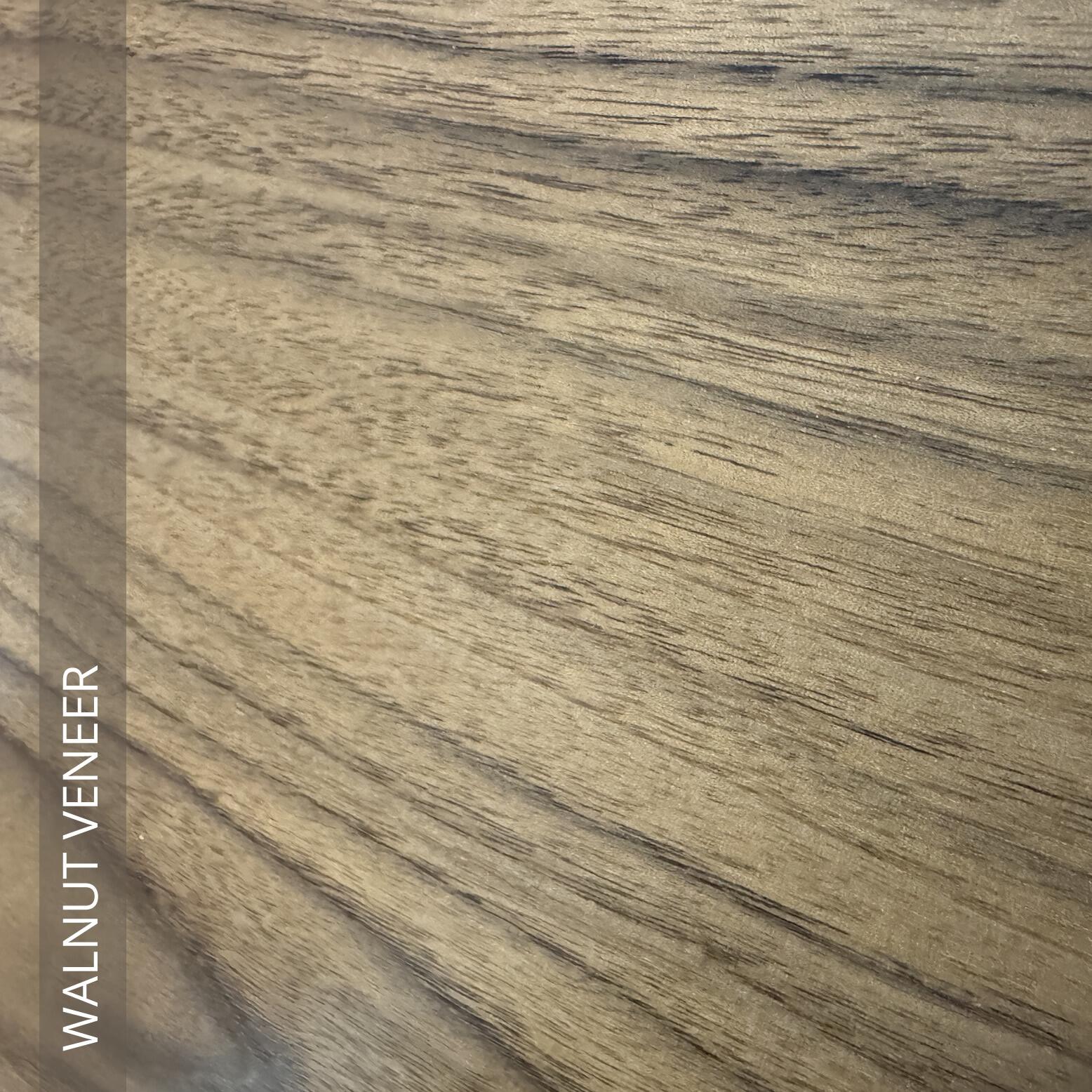

- Walnut veneer
- Pre-finished coating
- Modern 5 panel design

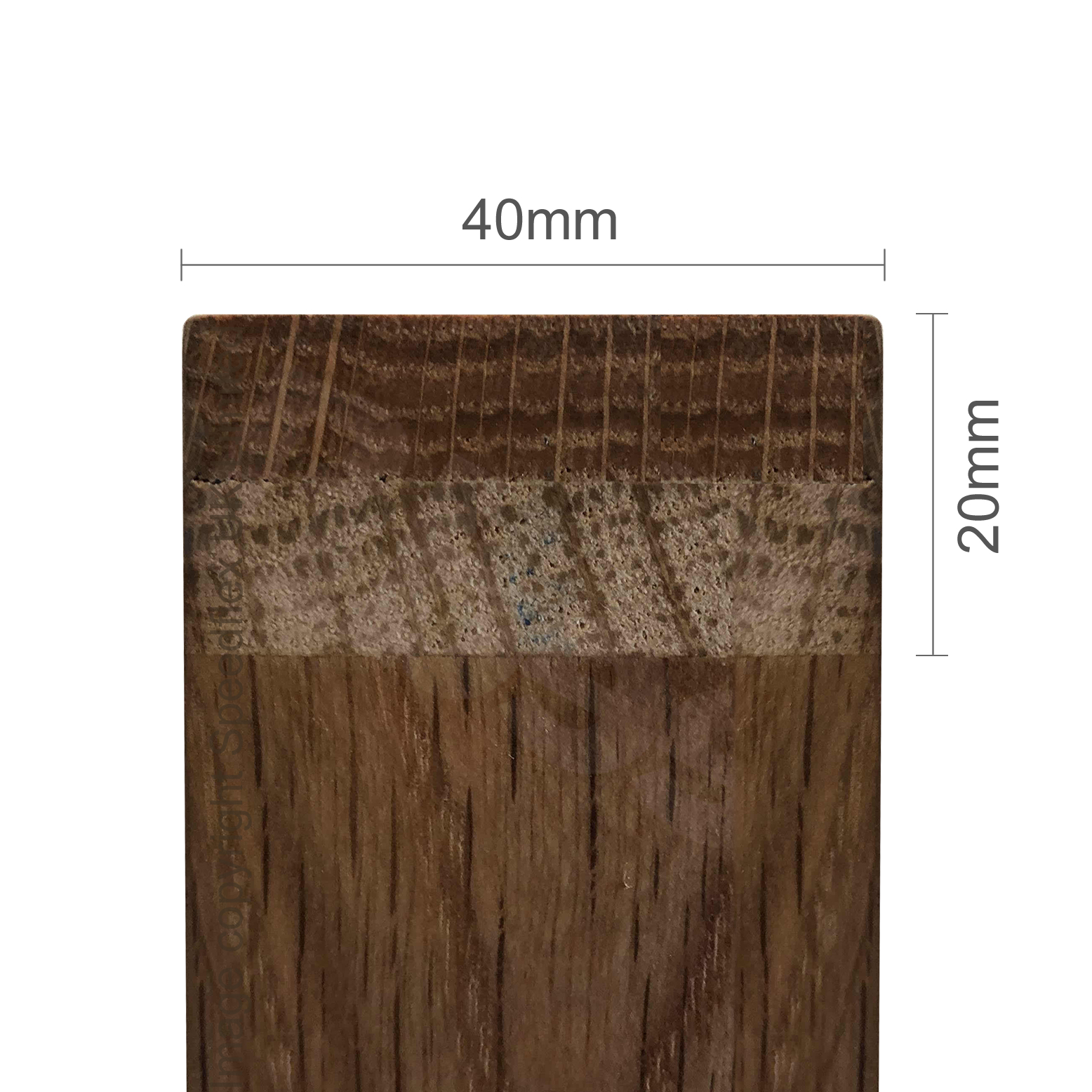

- 20mm stiles
- Polydoor P1000 stainless steel 180 degree hinge system
- Soft finger safe jamb seal fitted as standard
- Supplied Ready to Fit
- Can be installed without the need for a dedicated sub-frame (i)

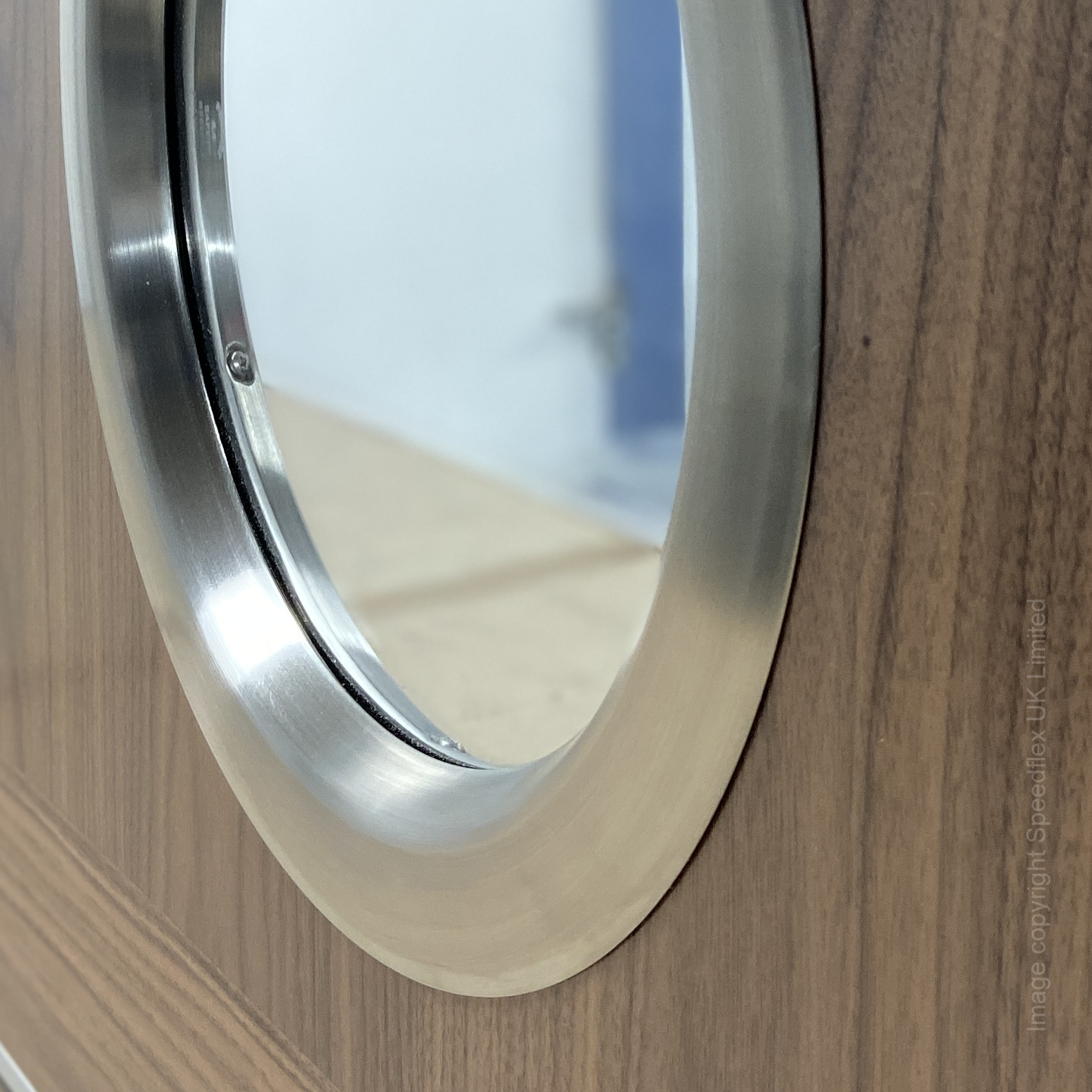

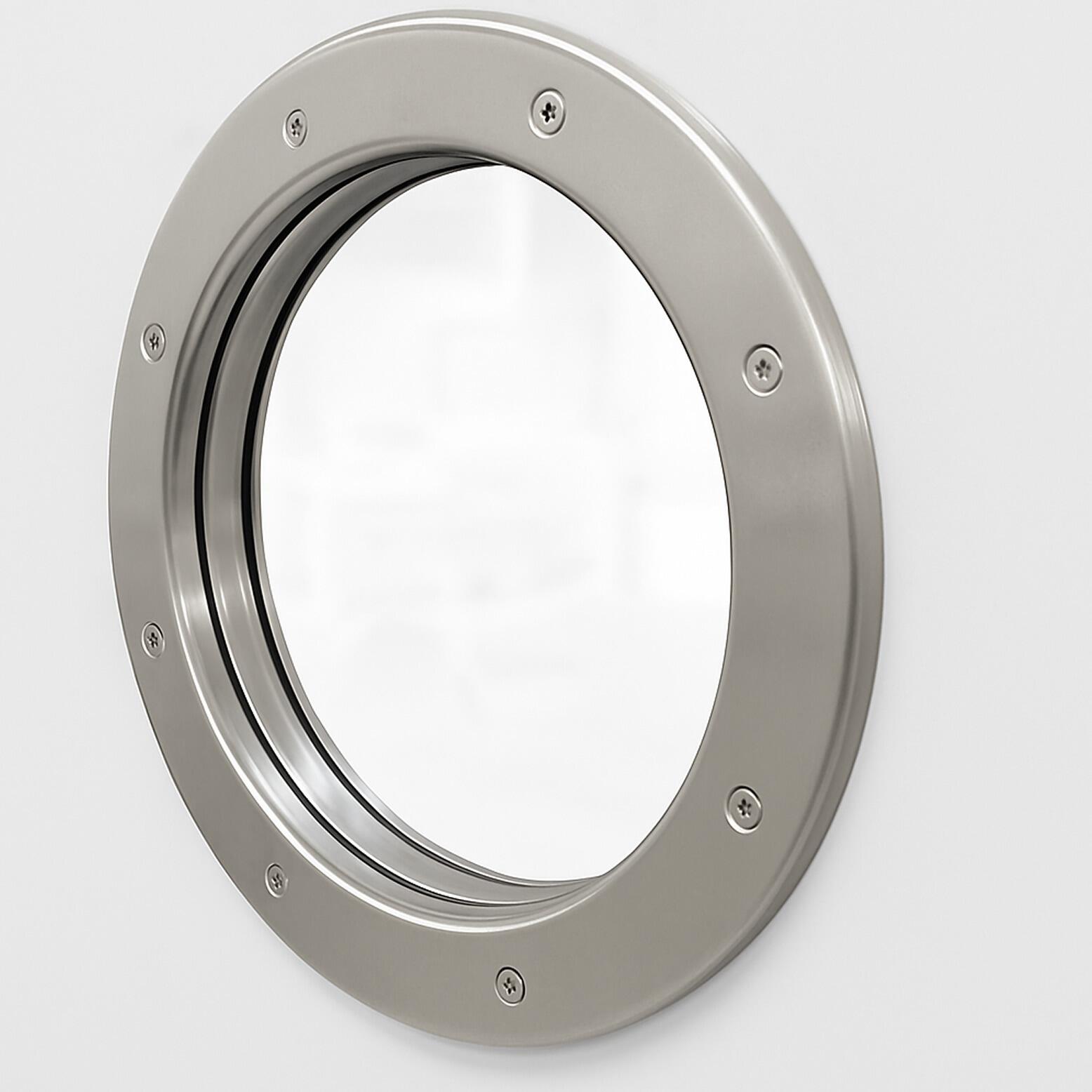

- Optional 385mm stainless steel vision window (300mm clear view)

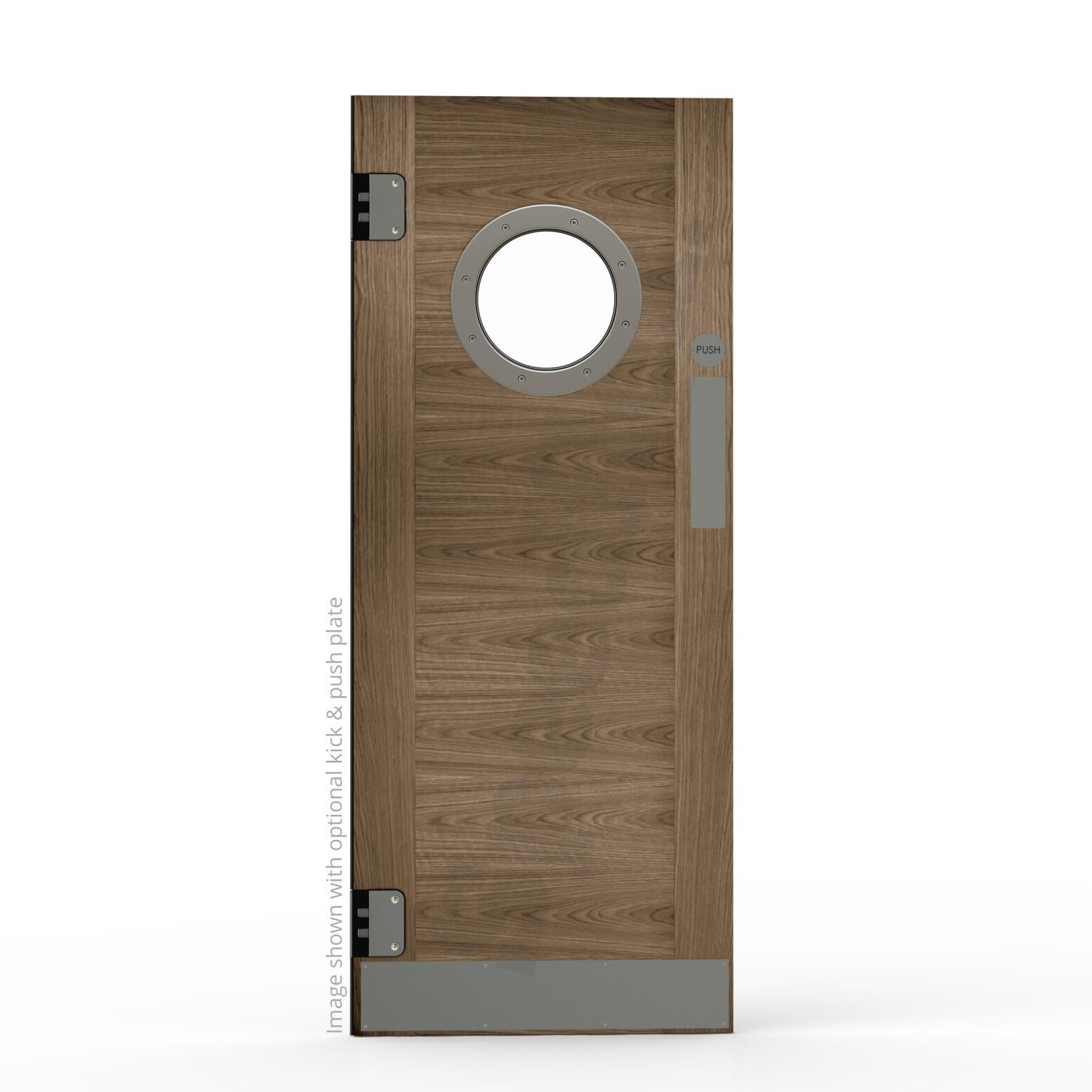

- Optional kick plates and push plates
Please note that no sub-frame is supplied with this door and kick plates and push plate options are supplied loose for fitting by others.
(i) Min recommended lining depth 90mm
- Dimensions
Thickness 40mm Finished Sizes mm 651x2040, 751x2040, 851x2040, 951x2040 (+/- 2.5mm) Minimum Reveal 90mm Weight Approx 22.4kg/m² - Technical Information
Assembly Fully assembled, supplied ready to install Fixing Method Door jamb fix. Stainless steel mounting plates 80mm wide, 8 x M6 CSK fixings Frame/Lining Not supplied, designed to fit in flat reveal min 90mm wide Gaskets Soft door jamb gasket (black) as standard Hinges 2 x stainless steel 180° Polydoor P1000 dual action heavy duty compression sprung hinges Operation Manual push, auto-close Lockset Retrofitting by others possible where no leading edge gasket is specified Window Frame Optional 304 grade stainless steel circular window Glazing 6mm laminate safety glass with 300mm I/D clear view Stiles 20mm Header Lipping 10mm Bottom Lipping 10mm Trimming 7mm maximum on 1 x long stile and 1 x horizontal edge - Downloads
