Add To Your WishlistOak Timber Swing Door

Add To Your WishlistOak Timber Swing Door



This door is supplied ready to fit and features a 40mm solid core, real oak veneer panel with 20mm oak stiles and pre-finished coating. The Polydoor P1000 stainless steel hinges provide a smooth 180 degree operation, further complemented with optional kick/push plates and circular stainless steel window. Each door is provided with finger safe door jamb seals as standard and available in a range of sizes.

Please refer to the downloads section below for additional information.



Sorry we're out of stock!

We can let you know when it's available again, just enter your email address below.


  • Additional Information

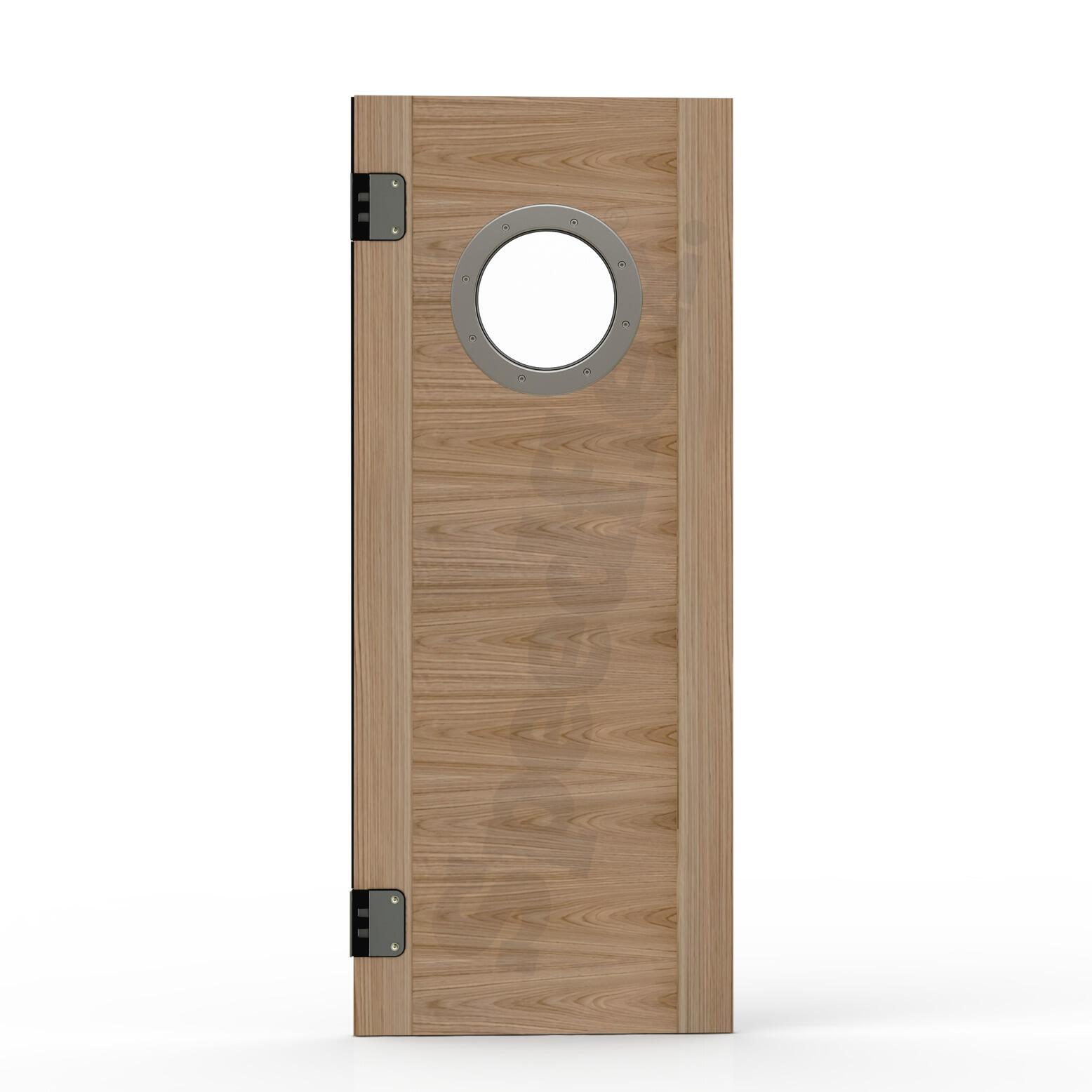

    A dual action, 180 degree timber swing door that combines a rich look with exceptional performance. This particular model is supplied with a solid core panel with 20mm oak stiles and a pre-finished real oak veneer.

    This model is supplied ready to fit and incorporates the Polydoor P1000 hinge system commonly found in high performance retail door sets throughout the world. This heavy duty hinge incorporates a vertical fitting adjustment to allow each door to be raised and lowered to avoid binding on either side of the opening before fixing in the final position.

    Door features include:

    • Real oak veneer
    • Pre-finished coating
    • Modern grooved look
    • 20mm oak stiles
    • Polydoor P1000 stainless steel 180 degree hinge system
    • Soft finger safe jamb seal fitted as standard
    • Supplied Ready to Fit
    • Can be installed without the need for a dedicated sub-frame (i)

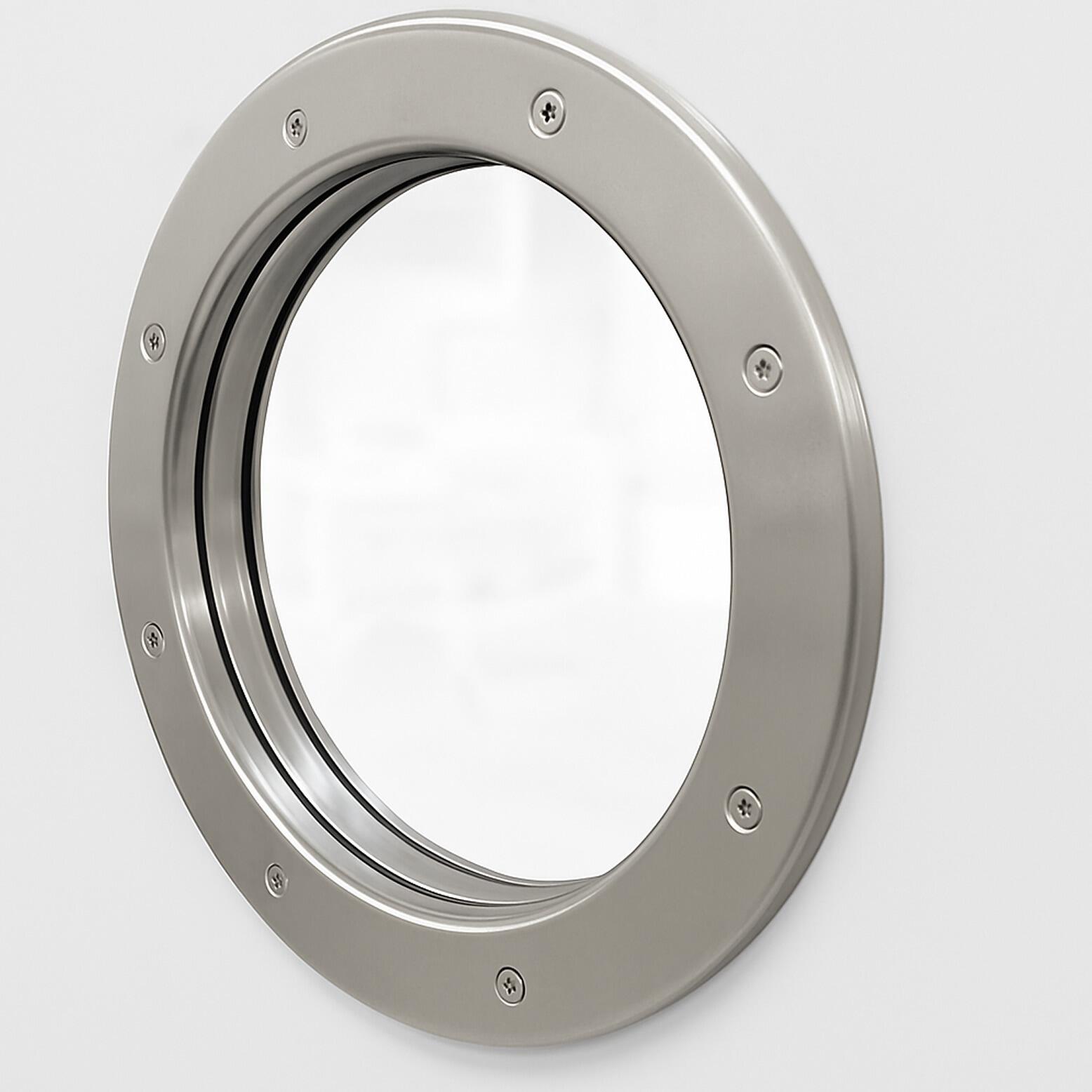

    • Optional 385mm stainless steel vision window (300mm clear view)

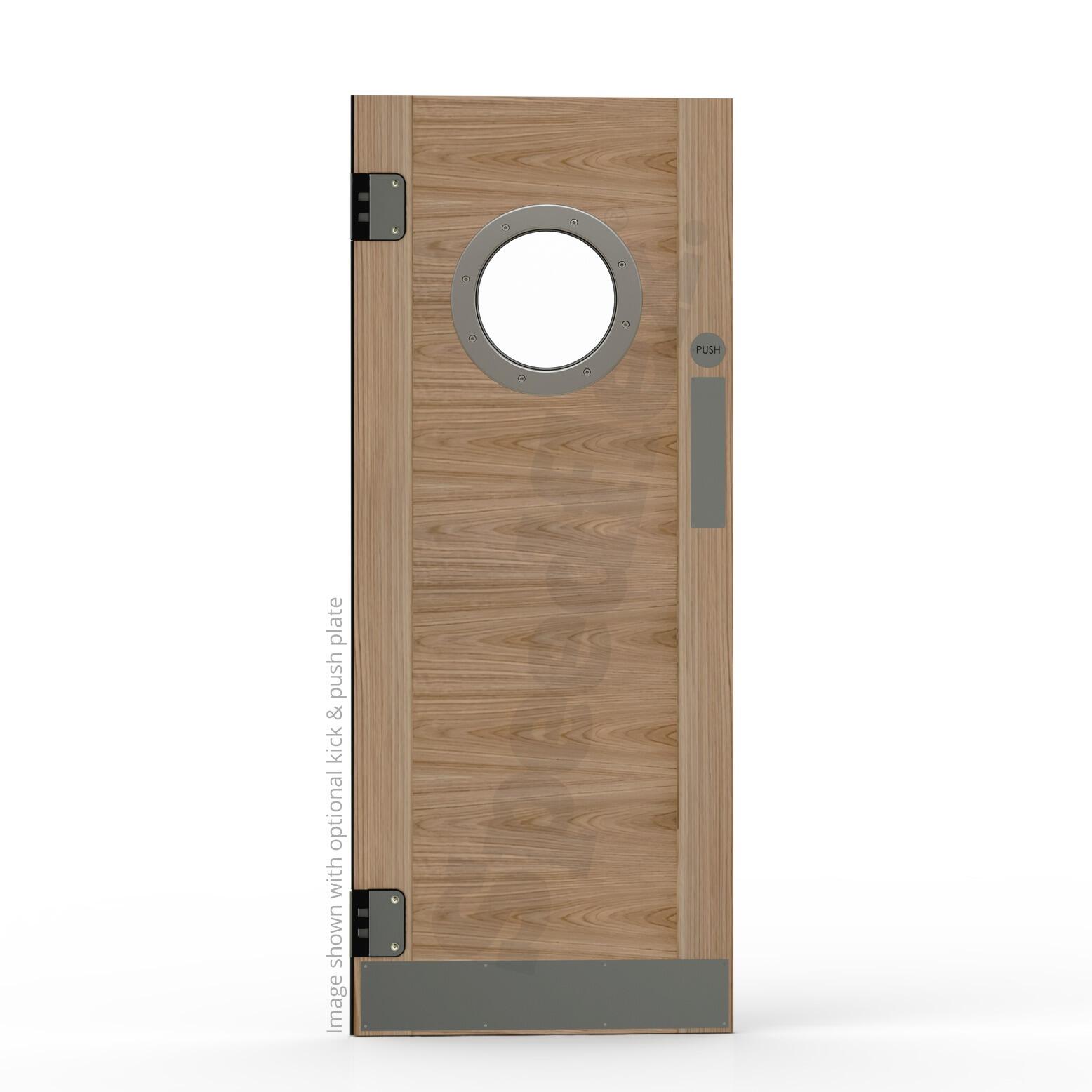

    • Optional kick plates and push plates

    Please note that no sub-frame is supplied with this door and kick plates and push plate options are supplied loose for fitting by others.

    (i) Min recommended lining depth 90mm

  • Dimensions
    Thickness40mm
    Finished Sizes mm651x2040, 751x2040, 851x2040, 951x2040 (+/- 2.5mm)
    Minimum Reveal90mm
    WeightApprox 22.4kg/m²
  • Technical Information
    AssemblyFully assembled, supplied ready to install
    Fixing Method
    Door jamb fix. Stainless steel mounting plates 80mm wide, 8 x M6 CSK fixings
    Frame/LiningNot supplied, designed to fit in flat reveal min 90mm wide
    Gaskets
    Soft door jamb gasket (black) as standard
    Hinges
    2 x stainless steel 180° Polydoor P1000 dual action heavy duty compression sprung hinges
    Operation
    Manual push, auto-close
    Lockset
    Retrofitting by others possible where no leading edge gasket is specified
    Window FrameOptional 304 grade stainless steel circular window
    Glazing6mm laminate safety glass with 300mm I/D clear view
    Stiles 20mm
    Header Lipping10mm
    Bottom Lipping10mm
    Trimming
    7mm maximum on 1 x long stile and 1 x horizontal edge
  • Downloads
