- Description

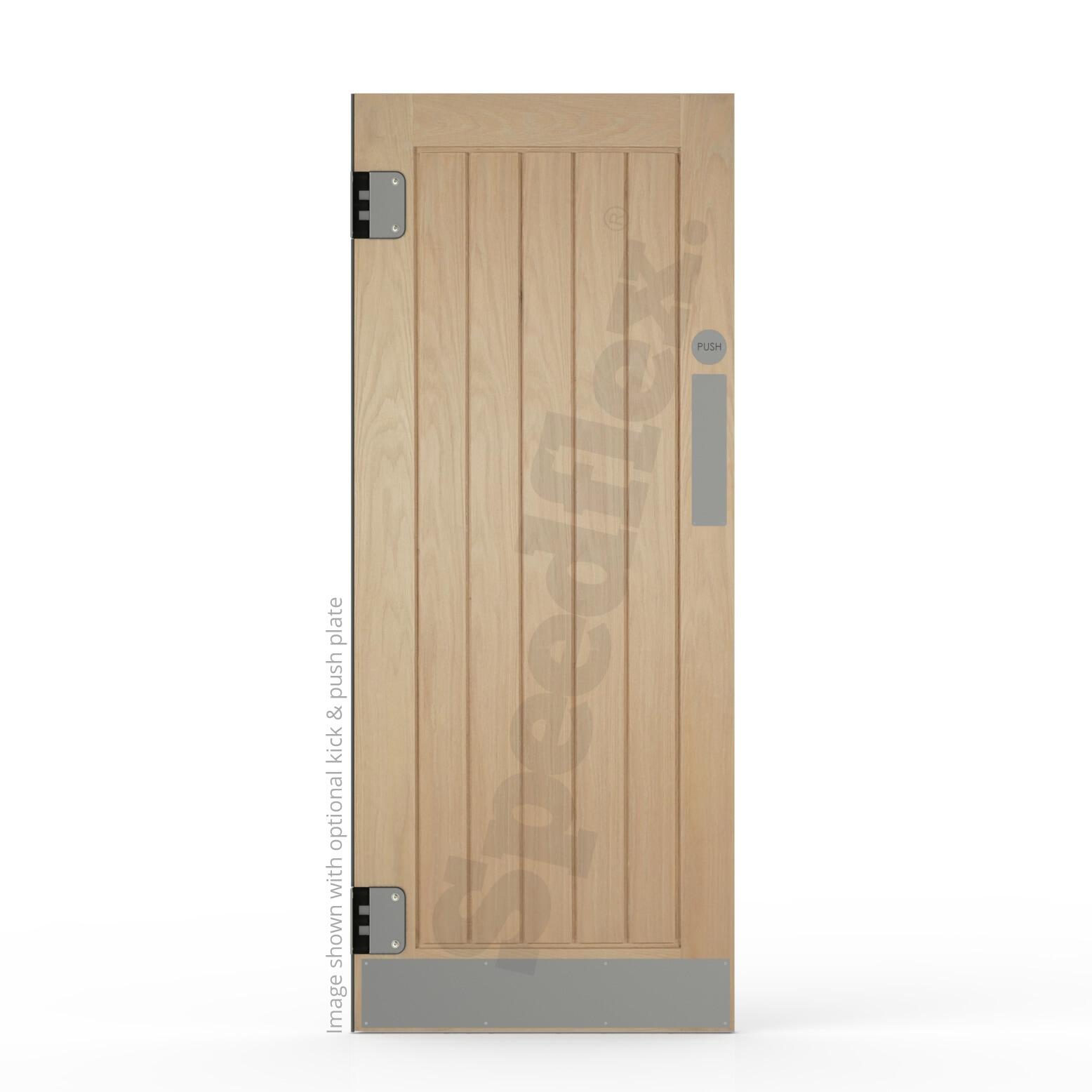

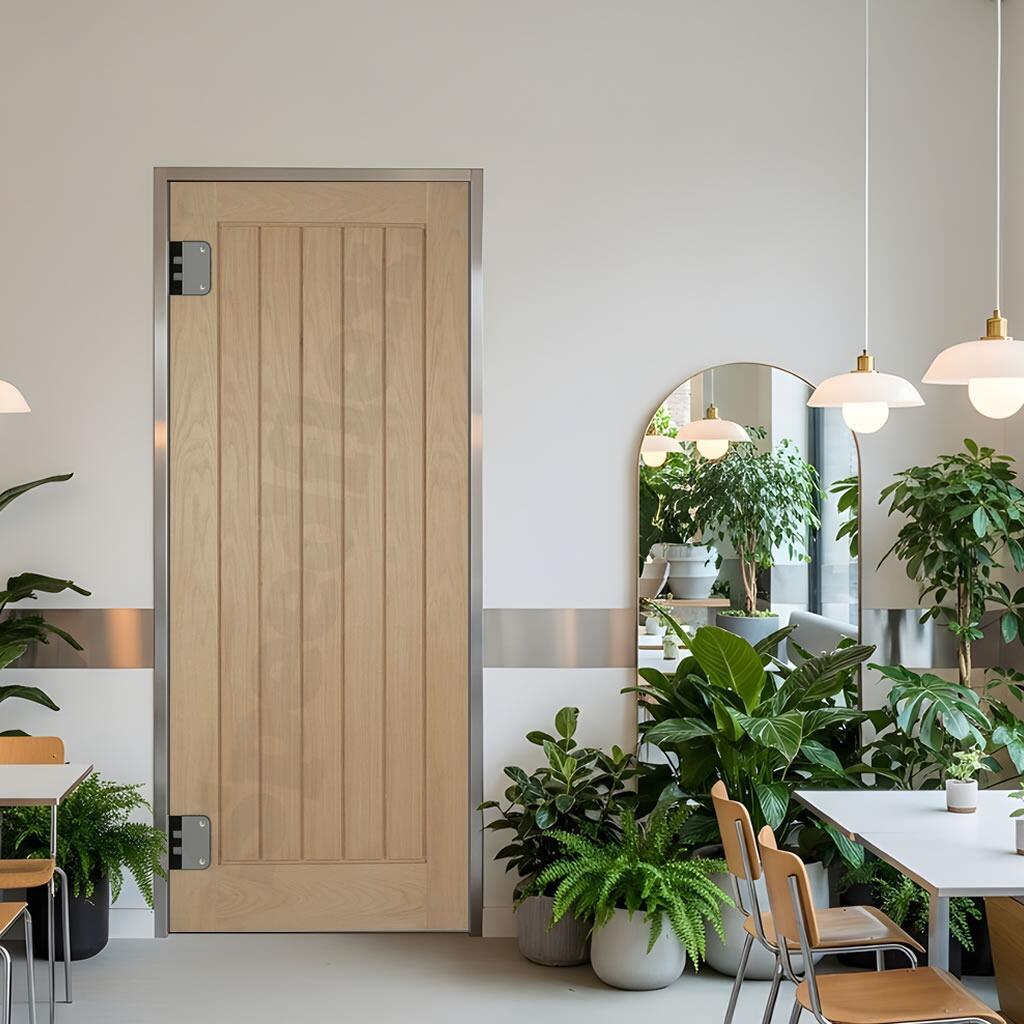

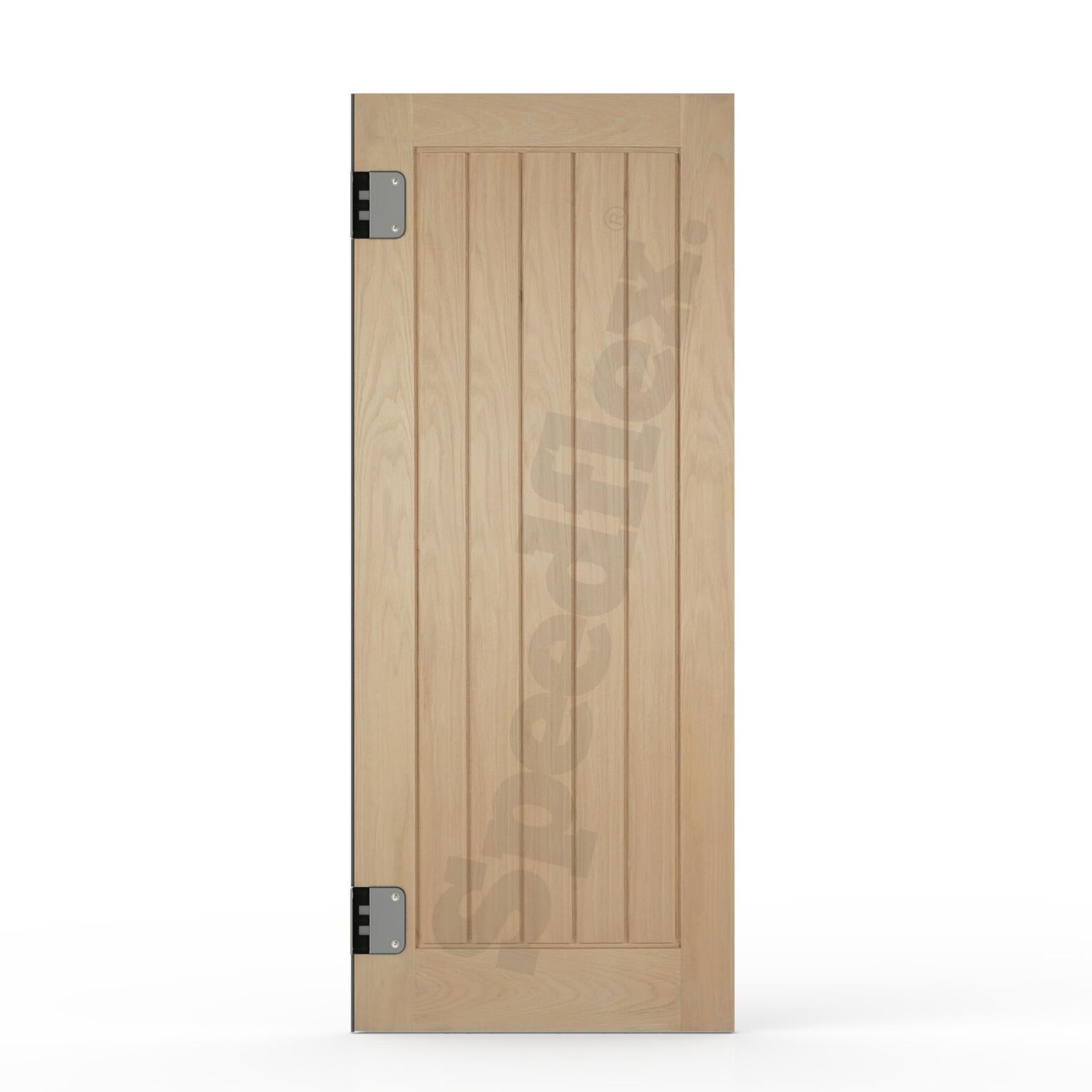

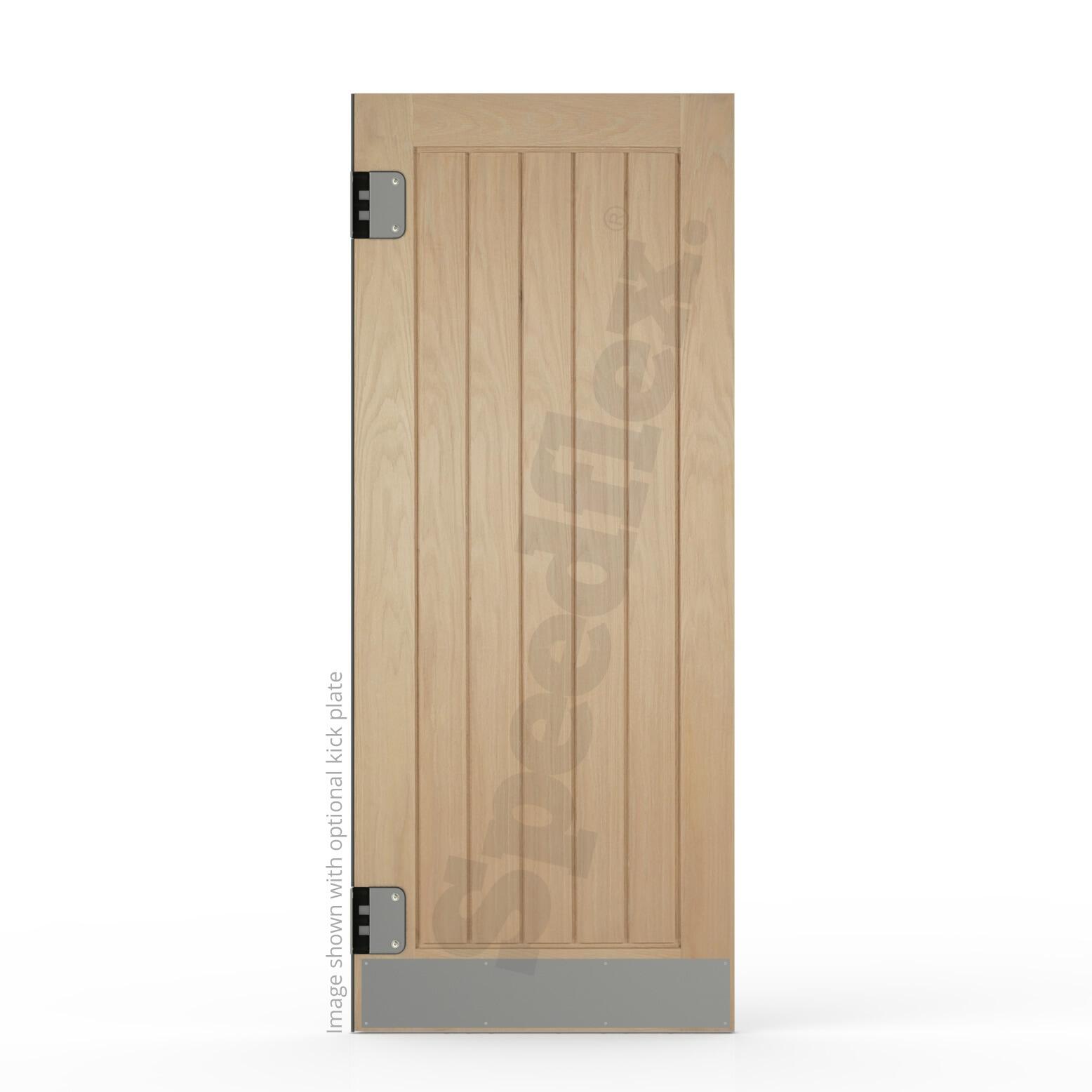

Engineered for performance and style, this pre-finished oak swing door is supplied fully assembled and ready to fit, saving valuable time on site. Each door includes a solid engineered 40mm core, real oak veneer panel, and solid wood stiles. All sizes include the Polydoor P1000 hinge system which is commonly found in high performance retail door sets throughout the world. Supplied with dual kerf seals fitted to the jamb as standard, and available in a range of sizes.
Please refer to the downloads section below for additional information.
- More Information
A dual action, 180 degree timber swing door that combines a rich look with exceptional performance. This particular model is supplied with a solid core panel with solid wood stiles and a pre-finished real oak veneer.
This model is supplied ready to fit and incorporates the Polydoor P1000 hinge system commonly found in high performance retail door sets throughout the world. This heavy duty hinge incorporates a vertical fitting adjustment to allow each door to be raised and lowered to avoid binding on either side of the opening before fixing in the final position.
Door features include:
- Real oak veneer
- Pre-finished coating
- Modern grooved look
- 20mm solid oak stiles
- Polydoor P1000 stainless steel 180 degree hinge system
- Dual kerf jamb seal fitted as standard
- Can be installed without the need for a dedicated sub-frame (i)
- Optional kick plates and push plates
- Polydoor easy-fit vertical hinge adjustment system
- Supplied Ready to Fit
Please note that no sub-frame is supplied with this door and kick plates and push plate options are supplied loose for fitting by others.
(i) Min recommended lining depth 90mm
- Dimensions
Thickness 40mm Finished Sizes mm 627x2040, 727x2040, 827x2040, 927x2040 (+/- 2.5mm) Minimum Reveal 90mm Weight Approx 22.4kg/m² - Technical Information
Assembly Fully assembled, supplied ready to install Fixing Method Door jamb fix. Stainless steel mounting plates 80mm wide, 8 x M6 CSK fixings Frame/Lining Not supplied, designed to fit in flat reveal min 90mm wide Gaskets Soft dual kerf seal jamb gasket (black) as standard Hinges 2 x stainless steel 180° Polydoor P1000 dual action heavy duty compression sprung hinges Operation Manual push, auto-close Lockset None Window Frame None Glazing None Stiles 20mm Header Lipping 10mm Bottom Lipping 10mm Trimming 7mm maximum on 1 x long lipping and 1 x horizontal edge - Downloads
